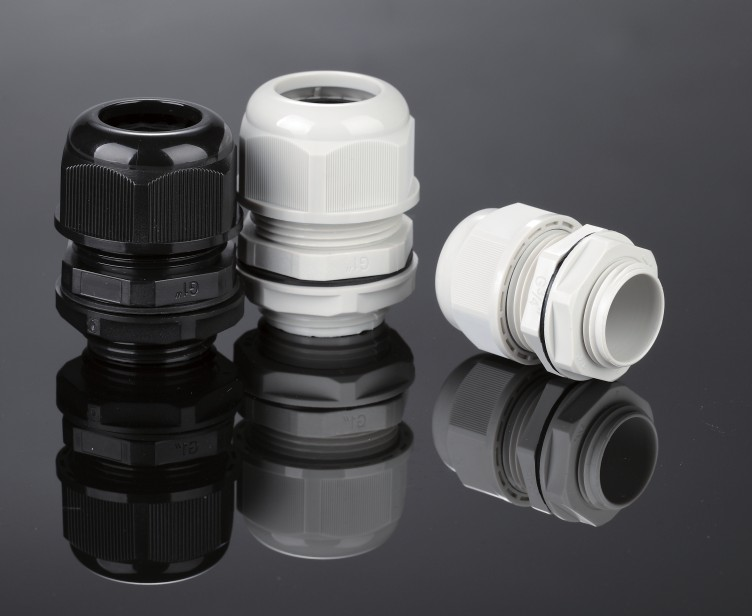

M20&M25 Multi-Hole Insert Cable Gland
PRODUCT FEATURE& SPECIFICATIONS
◆
Thread Type : Metric and PG.
◆ Material Data : Halogen-free Nylon PA 66 ( Flammability UL 94V-2 ) for A.C.F parts. ( Contact us for Flammability V0 material )
Standard in weather-resistant EPDM rubbers for B.D parts. ( NBR rubber is optional for oil-resistance applications )
◆
IP Protection : IP68 - depending on the less differences between cable diameters & sealing-hole openings. ( Less is Better )
◆
Working Temp. : - 40 °C to 105 °C ( - 40 °F to 221 °F ). Short-Term to 160 °C ( 320 °F ).
◆
Application : multi-hole cable glands allow several cables water-tightly to be lead through in one gland simultaneously.
From variety size choices, no need to use one gland for each wire, so the spaces of wire entry can be reduced to minimize costs & working time.
|
Thread |
Sizes |
Cable Range mmφ |
Thread O. D. C1 mm |
Thread Length C2 mm |
Spanner Size A / F mm |
Std. Pkg. pcs |
|
M20x1.5 |
BN-M20-14 |
8.5-14 |
20 |
10 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20L-14 |
8.5-14 |
20 |
15 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20-H2-06 |
2.5-6 |
20 |
10 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20L-H2-06 |
2.5-6 |
20 |
15 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20-H3-05 |
2-5 |
20 |
10 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20L-H3-05 |
2-5 |
20 |
15 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20-H4-4.5 |
2-4.5 |
20 |
10 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20L-H4-4.5 |
2-4.5 |
20 |
15 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20-H5-04 |
1.7-4.2 |
20 |
10 |
33/ 33 |
50 |
|
M20x1.5 |
BN-M20L-H5-04 |
1.7-4.2 |
20 |
15 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25-18 |
12.5-18 |
25 |
10 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25L-15 |
12.5-18 |
25 |
15 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25-H2-08 |
4.5-8.7 |
25 |
10 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25L-H2-08 |
4.5-8.7 |
25 |
15 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25-H3-08 |
4-8 |
25 |
10 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25L-H3-08 |
4-8 |
25 |
15 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25-H4-07 |
3.5-7 |
25 |
10 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25L-H4-07 |
3.5-7 |
25 |
15 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25-H5-06 |
3-6 |
25 |
10 |
33/ 33 |
50 |
|
M25x1.5 |
BN-M25L-H5-06 |
3-6 |
25 |
15 |
33/ 33 |
50 |
PACKING DETAIL
|
Thread |
Sizes |
Packing Detail Pcs/ Per Carton |
Per Innerbox Pcs/ Total Inner Box Qty |
Carton size L x W x H（ cm） |
Carton Size Cbm |
Carton Weigh t（K g） |
|
Cable Gland M20 Series |
20mm |
1200 pcs |
100 pc / 12 bags |
49x35x37 |
0 . 064 |
24 |
|
Cable Gland M25 series |
25mm |
800 pcs |
50 pc /16 bags |
49x53x37 |
0 . 064 |
22.6 |
