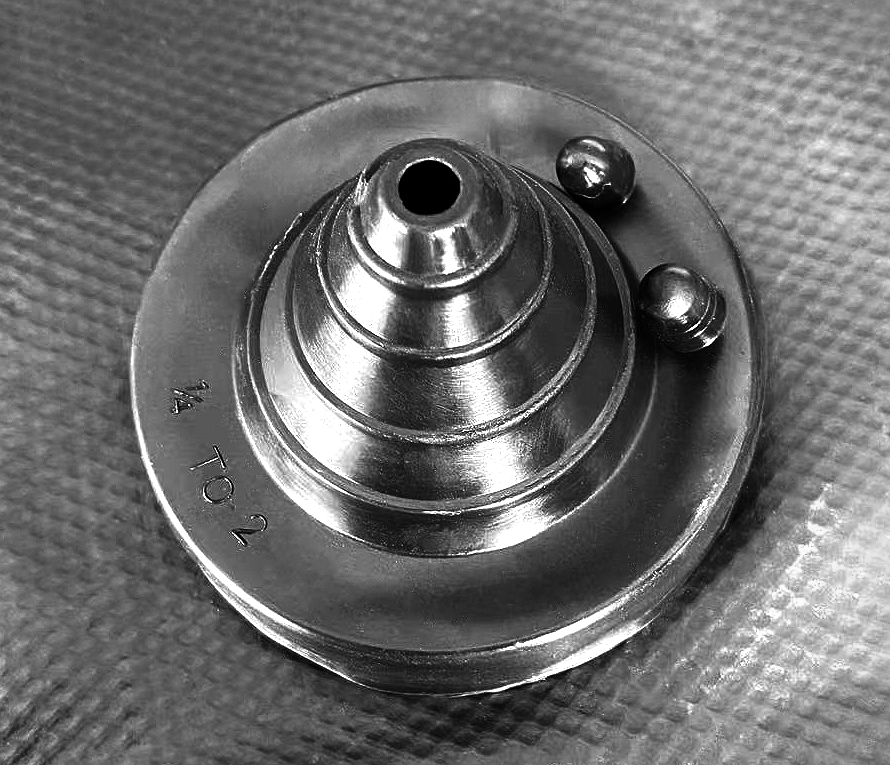

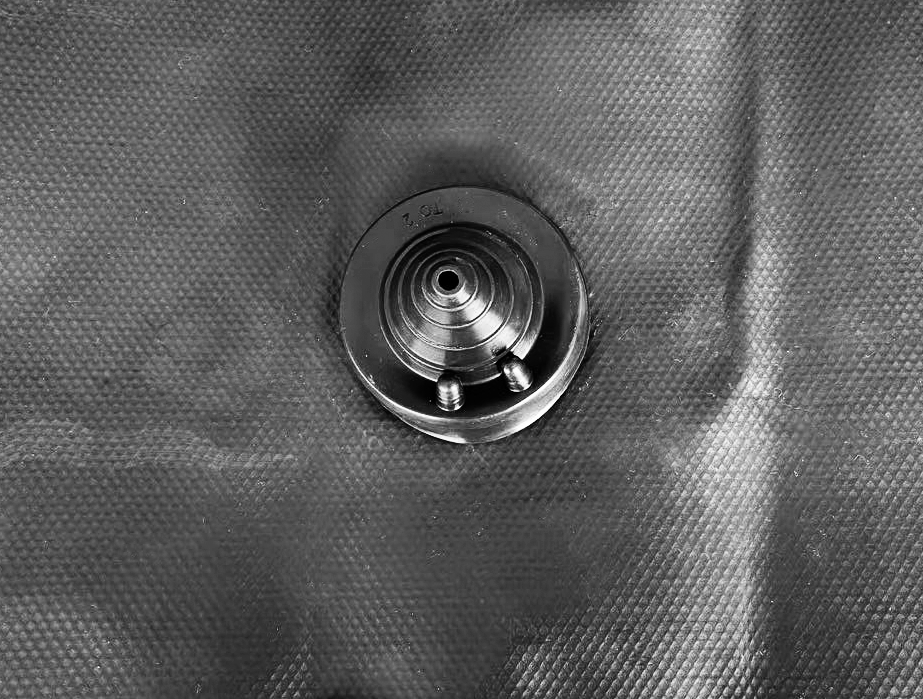

NEB DT-50 Square Base Dektite
PRODUCT DESCRIPTION
NEB DT-50 square base flashing is a lead f ree flashing made f rom rubbers containing isobutylene EPDM, an
inner smooth soft aluminium mesh and butyl self- adhesive layer. The product consists of aluminum expandable
Mesh cast in environmentally f r iendly polymer rubber. I t is a high performing product, efficient, easy to apply with strong UV resistance. I t can be stretched, safe to use and is lightweight with strong tear. The flexible
composition enables i t to self- weld on laps.
The product is a non-bituminous flashing tape that will provide a waterproof seal. It is ideal for roof flashing solution, sealing of chimneys and when flashing between brickwork and conservatories. Other applications
include sealing leaking roofs, dormers, rooflights, solar panels etc.
PRODUCT FEATURE& SPECIFICATIONS
|
Appearance / color |
Black (RAL9011), Grey(RAL7043), Red(RAL 8004) |
|
Length stretch ability |
up to 50% |
|
Width stretch ability |
up to 15% |
|
Solid content |
99% |
|
Density |
1.4-1.7g/cm3 |
|
Tensile strength |
>2Mpa |
|
Temperature resistance |
-40 ℃ to +100 ℃ |
|
Life time |
up to 20 years |
|
Shelf life |
12 months in original packing |
|
Storage |
stored in dry& cool condition |
|
Material |
EPDM-lead zinc sheet-butyl tape |
|
Pipe size |
6 . 35 - 50 . 8 mm |
|
Base size |
450*280mm |
PRODUCT SIZE
|
Thickness(MM) |
Length(M) |
Width(MM) |
|
2 |
5 |
280 |
|
2 |
5 |
300 |
|
2 |
5 |
370 |
|
2 |
5 |
560 |
Or according to customer ’s requirement
PACKING DETAIL
|
Name |
Packing Detail Pcs/ Per Carton |
Carton Size L x W x H（cm） |
Carton Weight（ kg） |
|
NEB DT- 50 |
25pcs |
85x32x23cm |
15.5kg |
